COGO Rotate and Translate

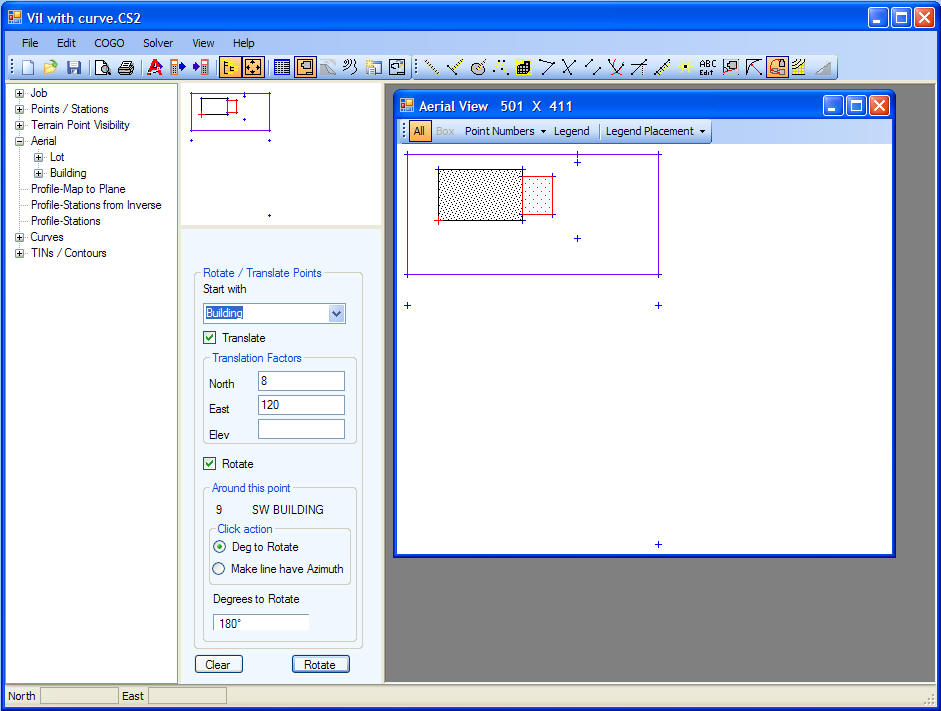

  1. The points below represent a lot with a building in the design phase
  2. A decision is made to move the building to the South side of the lot and turn the building around
  3. A rotation of 180 deg will turn the building around but it would be in the wrong position - Like this
  4. A translation of 8 ft to the North (8) and 120 ft to the East (120) is used to put the building on the South side of the lot "Turned around"


  1. Translation selected
  2. Rotation selected
  3. Rotation was clicked

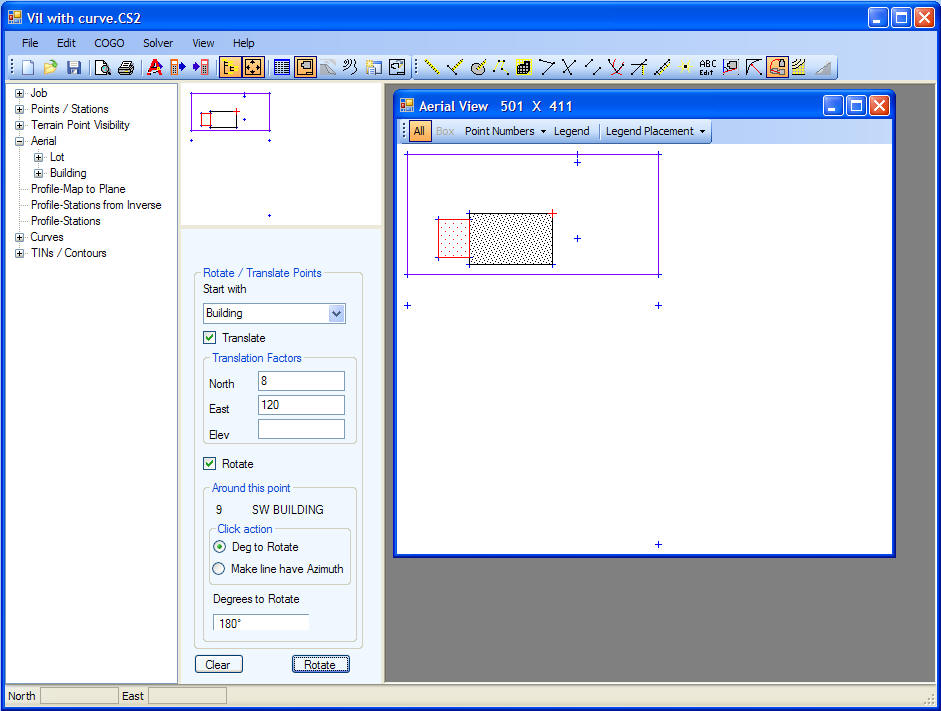

  4. Below is the result of the combination translation and rotation
